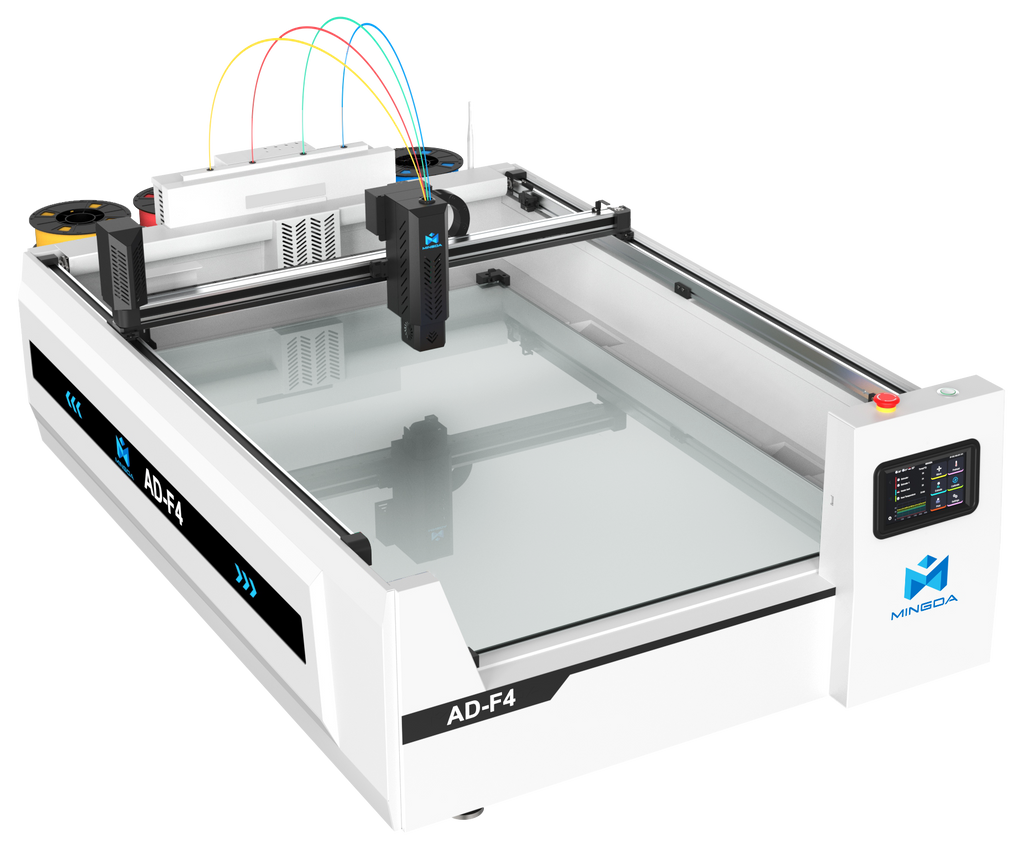

MINGDA AD-F4 3D Printer

Overview

The MINGDA AD‑F4 is a high-performance, industrial-grade FDM 3D printer tailored specifically for fast and efficient signage production. It combines blazing print speed, multi-color capability, and smart automation in a large, reliable format.

Key Features

• Ultra-Fast Printing
  Achieves print speeds up to 300 mm/s, with 10,000 mm/s² peak acceleration—reaching top speed from a standstill in just 0.035 seconds. Recommended high-speed printing runs at 200 mm/s, with a max flow rate of 40 mm³/s.

• Four-Color Automatic System

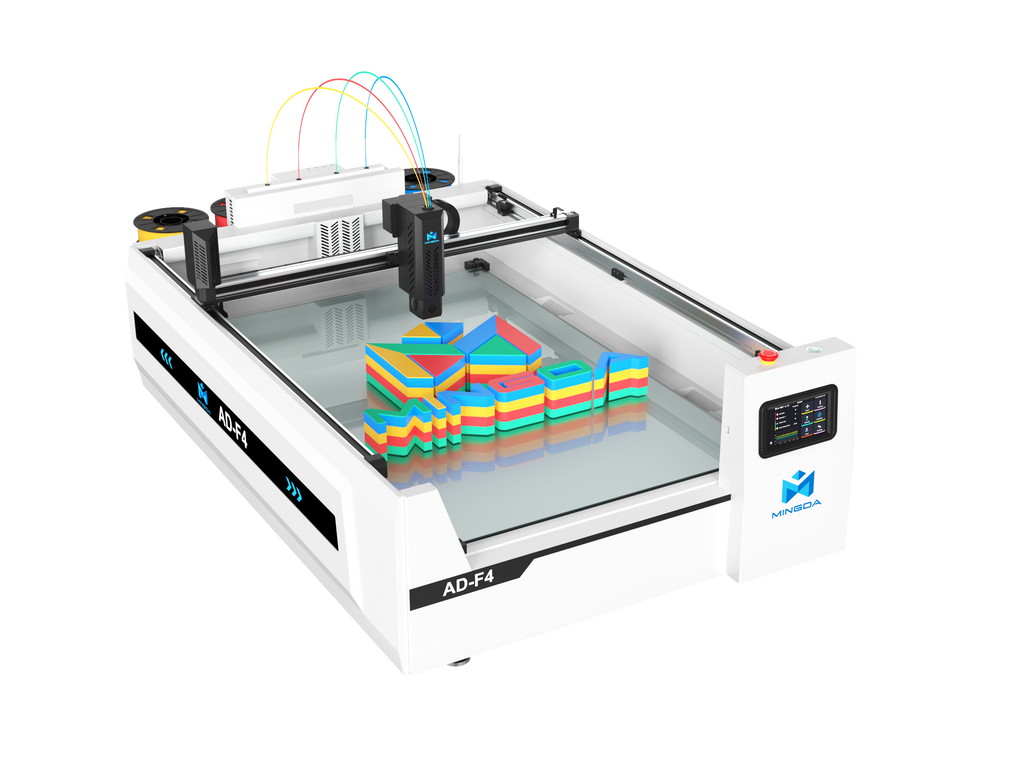

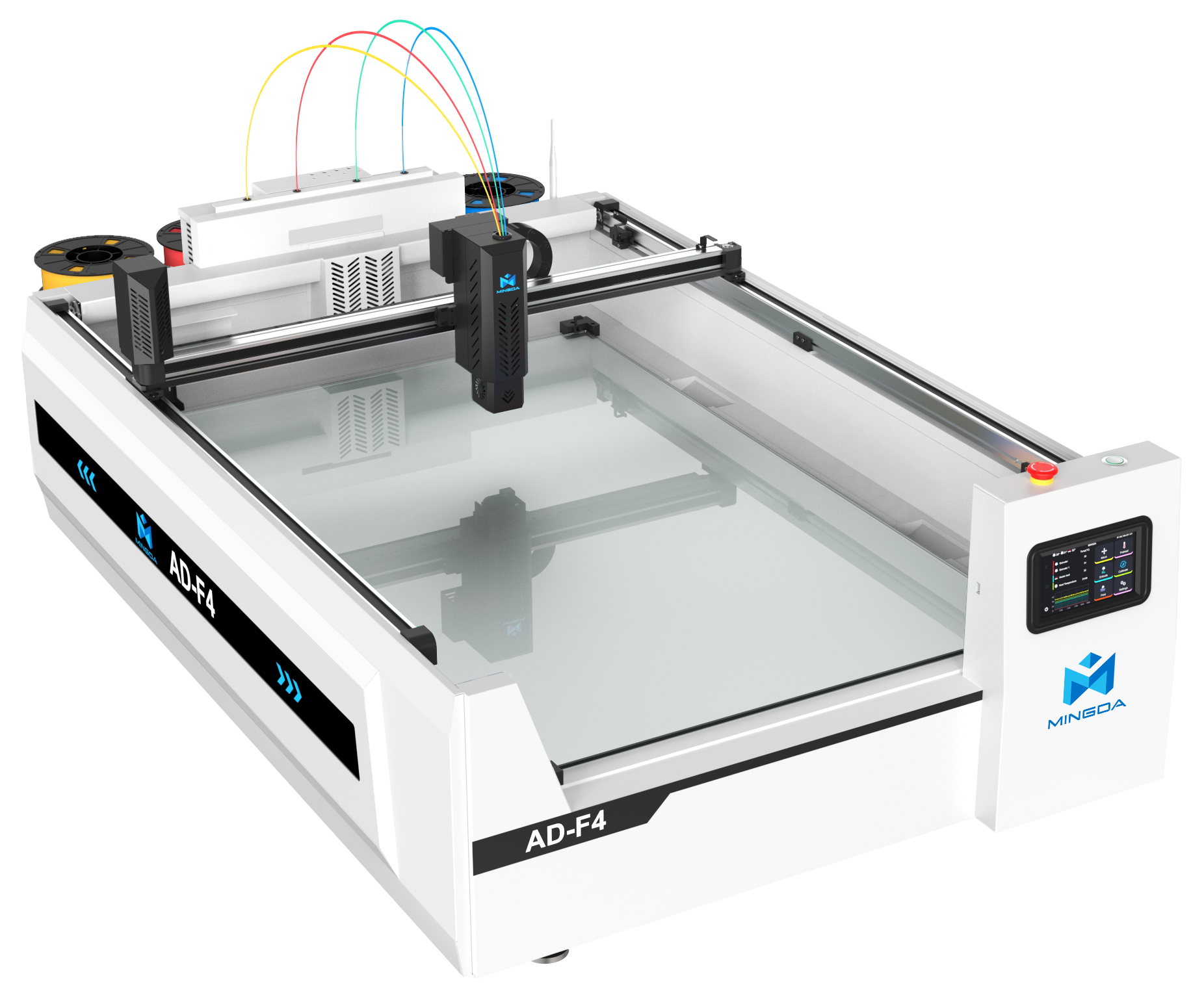

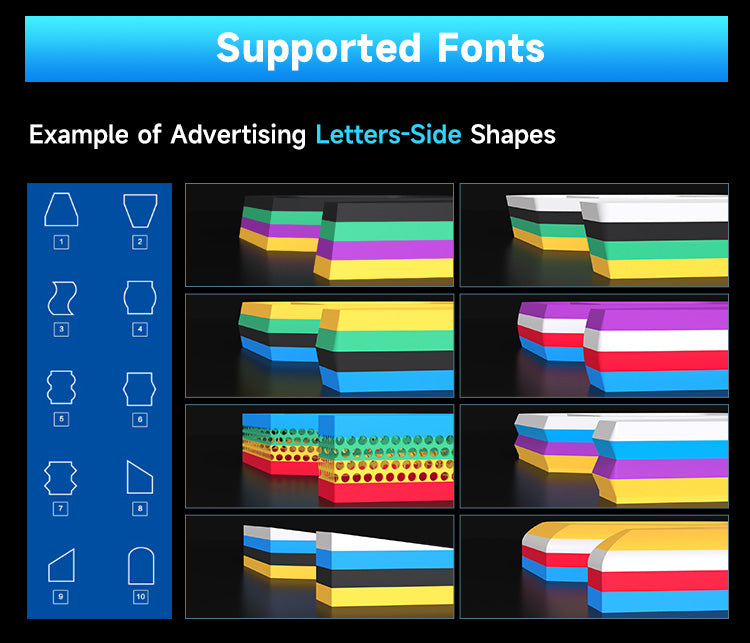

  Equipped with an IMS four-color feeding system, enabling vibrant, multi-colored prints—especially useful for LED signage and letters.

• Generous Build Volume

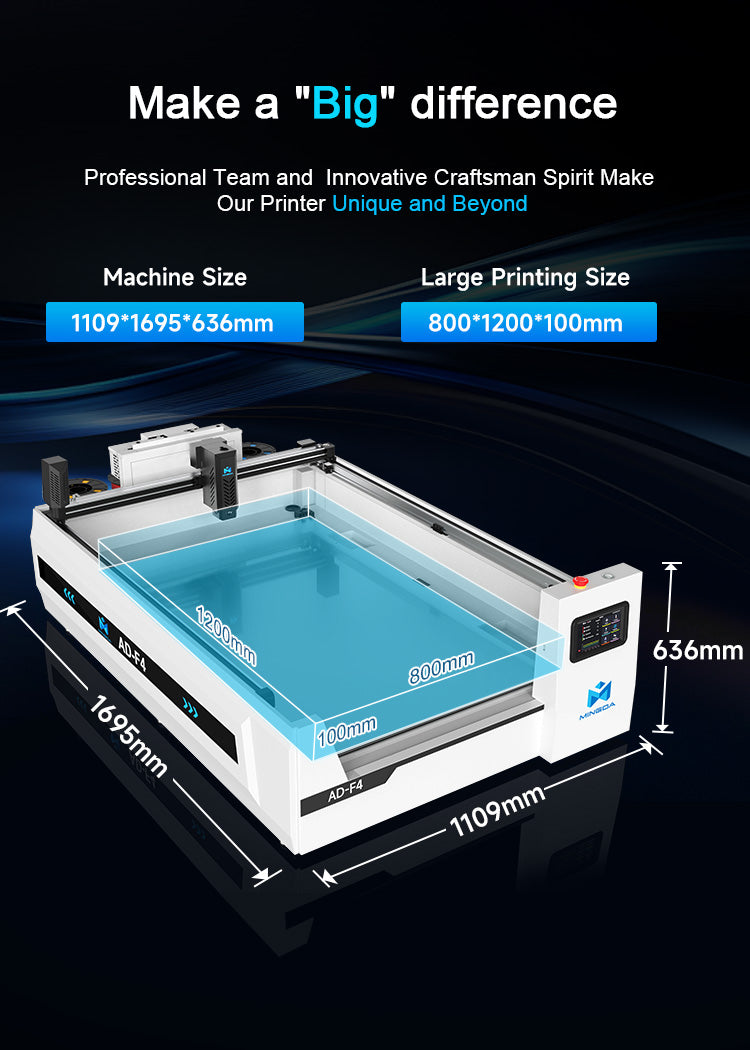

  Offers a spacious build area of 1200 × 800 × 100 mm, making it ideal for large channel letters and signage.

• Precision & Stability

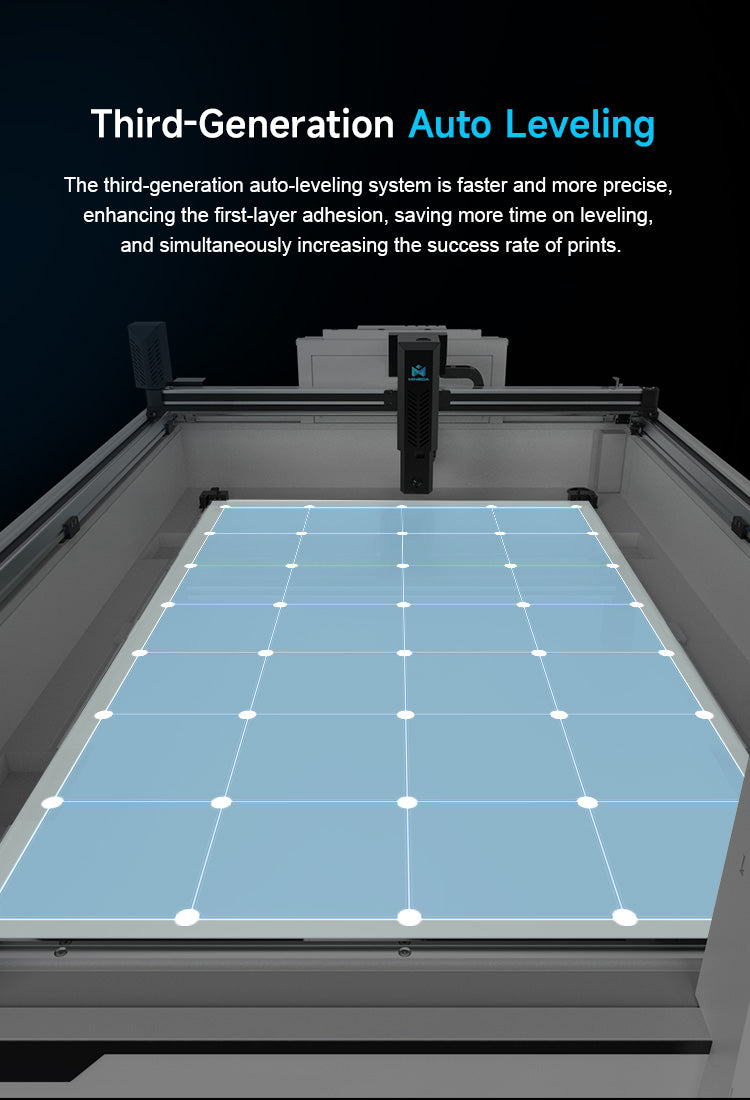

  Features third-generation auto-leveling for faster and more accurate bed leveling, and an input-shaper system that reduces vibration and improves surface smoothness.

• Smart & Efficient Design

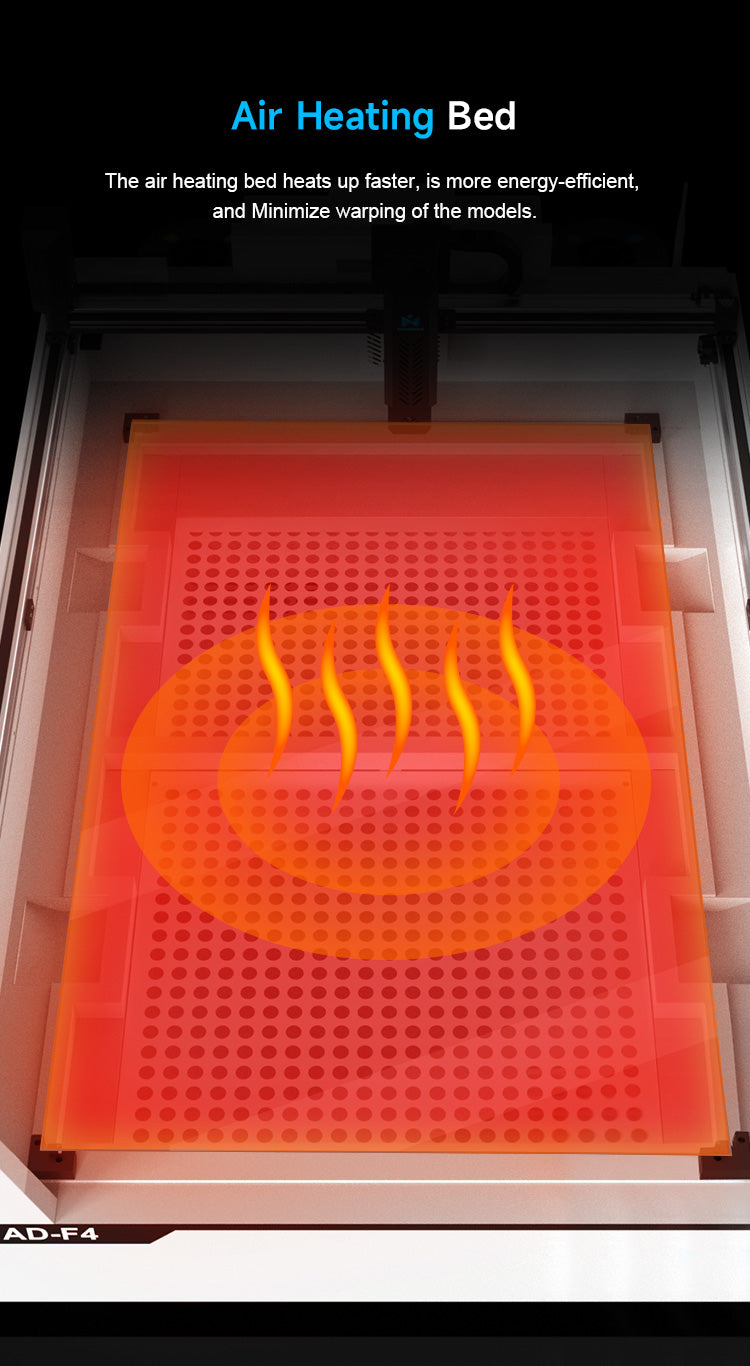

  Includes an air-heated bed that warms models quickly while consuming less energy and reducing warping. Intelligent features such as filament break detection and power-off resume ensure continuous, reliable printing.

• Connectivity & Control
  Supports remote control and monitoring, enabling more efficient workflow and supervision. Users also benefit from MINGDA’s self-developed slicing software for fast modeling and enhanced functionality.

• Compact Footprint
  The overall machine dimensions are 1109 × 1695 × 636 mm, making it suitable for larger workshops without taking up excessive space.

Technical Specifications

Why Choose the AD-F4

Designed for practical, high-volume signage production, the AD-F4 delivers speed, multi-color capability, and precision in one efficient package. Its robust motion system and intelligent design make it ideal for businesses focused on rapid, colorful, and reliable output.
