ELEGOO Mercury Plus V3.0 — რეცხვისა და გამყარების სადგური / Wash & Cure Station
ELEGOO Mercury Plus V3.0 — რეცხვა და გამყარება ერთ მოწყობილობაში, resin ბეჭდვის სრული პოსტდამუშავებისთვის.
როცა resin პრინტერი ბეჭდვას ამთავრებს, მოდელი ჯერ არ არის მზად. მას ორი რამ სჭირდება: ჩამორეცხვა ზედმეტი resin-ისგან და ულტრაიისფერი (UV) სხივით საბოლოო გამყარება (curing). ხელით ორივე ნელი, ბინძური და არათანაბარია — Mercury Plus V3.0 ორივეს ავტომატურად აკეთებს.
ქვედა ნაწილი 7.5 ლიტრიანი სარეცხი ავზია. რეცხვა ორი რეჟიმით შეგიძლიათ: მოდელი პირდაპირ საბეჭდ ზედაპირზე (build plate) დატოვოთ და ჩამოკიდებული გარეცხოთ, ან კალათაში (basket) ჩააწყოთ და ისე დაატრიალოთ. ზედა ნაწილი 405 ნმ UV გამყარების კამერაა 24 დიოდით, 360° მბრუნავი მაგიდით და შიდა ამრეკლი ზედაპირით, რომ სინათლე მოდელს ყველა მხრიდან მიწვდეს.
მახასიათებლები
- სარეცხი ავზი: 7.5 ლიტრი
- რეცხვის მაქსიმალური ზომა კალათით: 230 × 135 × 260 მმ
- რეცხვის მაქსიმალური ზომა საბეჭდი ზედაპირით (build plate): 214 × 135 × 180 მმ
- გამყარების მაქსიმალური ზომა: Ø250 × 290 მმ
- UV: 24 დიოდი, 405 ნმ ტალღის სიგრძე
- ტაიმერი: 0–30 წუთი
- ზომები: 302.5 × 302.5 × 412.5 მმ
- წონა: 4.7 კგ
- კვება: 100–240 ვ, 50/60 ჰც
კორპუსი ბლოკავს UV სხივის 99.9%-ს, ამიტომ გამყარებისას ოთახში ყოფნა უსაფრთხოა. თავსებადია ELEGOO Mars და Saturn სერიის პრინტერებთან, მათ შორის Saturn 4 Ultra-სთან და Mars 5 Ultra-სთან. ELEGOO ამ მოდელს ზოგჯერ Wash and Cure Station 3.0 სახელითაც ყიდის — ეს იგივე მოწყობილობაა.

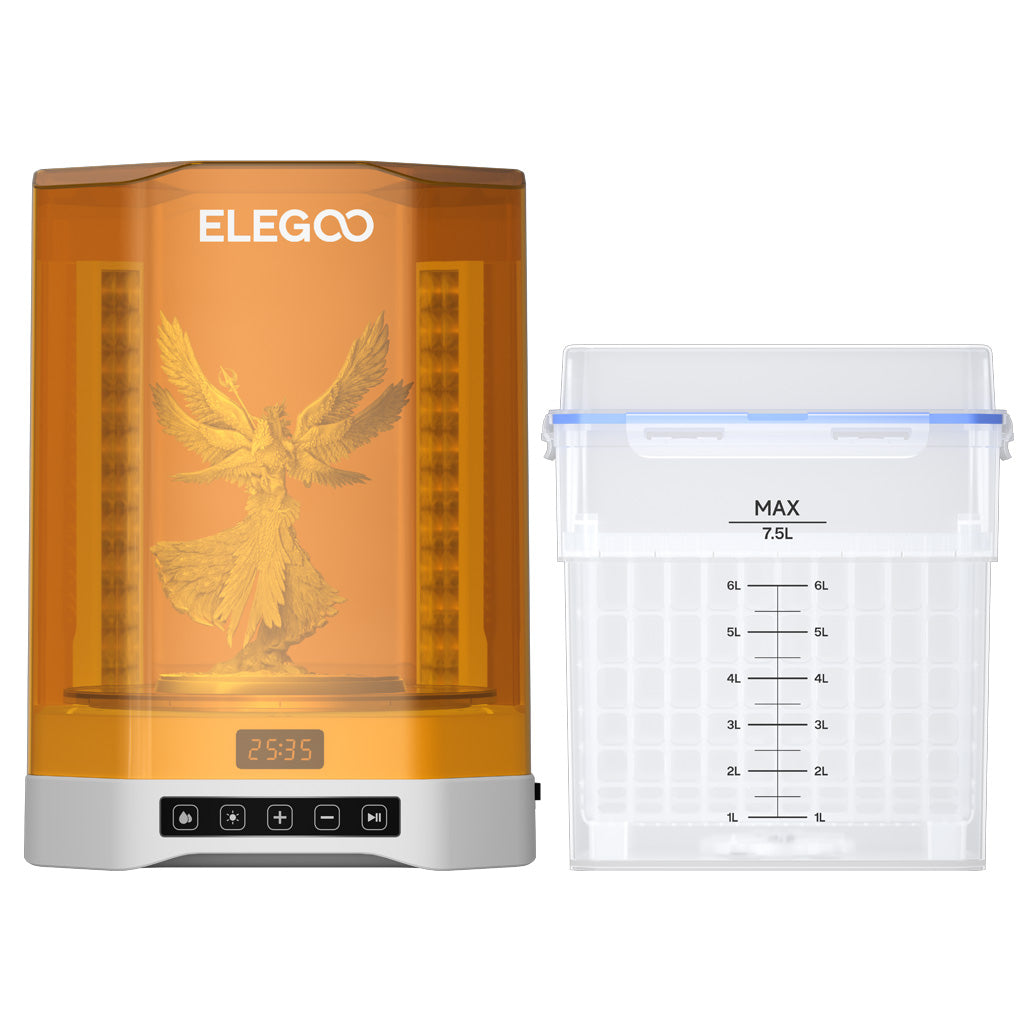

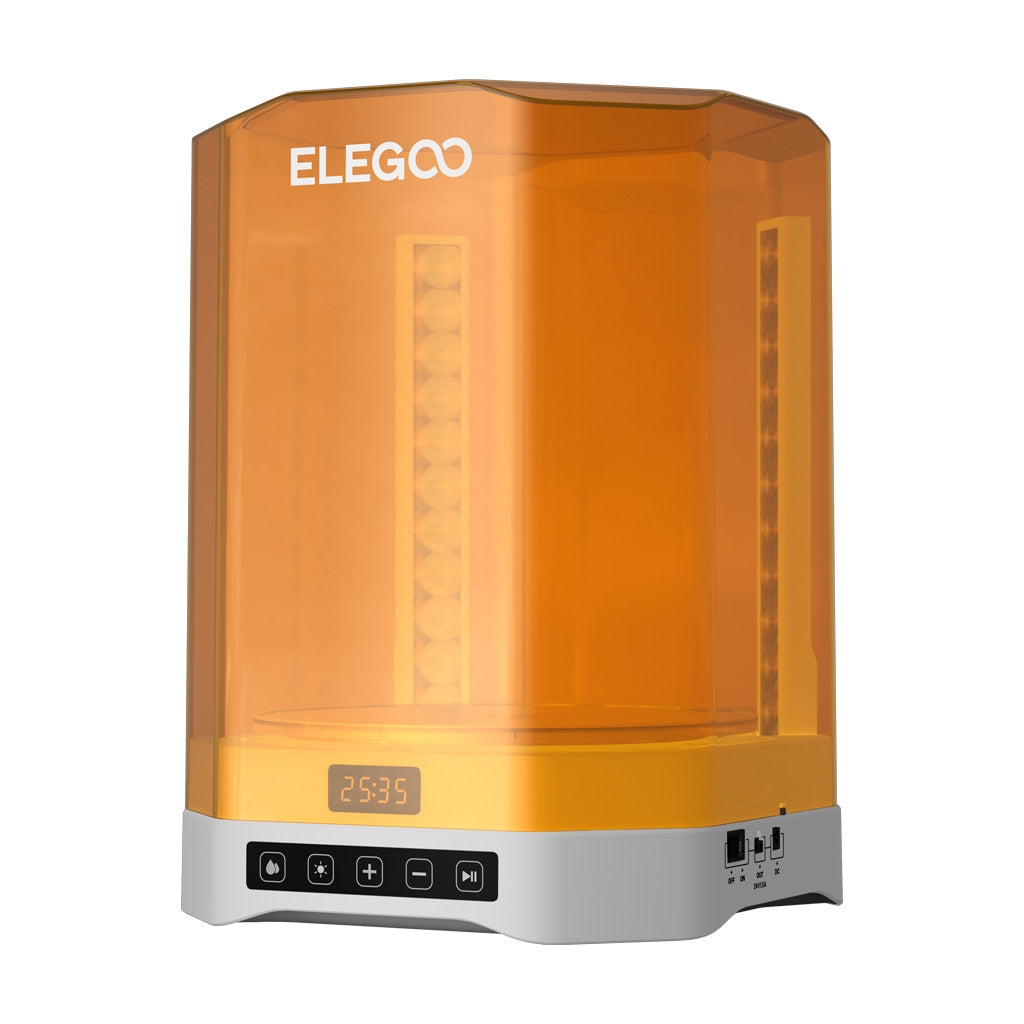

ELEGOO Mercury Plus V3.0 — a single machine that both washes and cures resin prints.
A resin print is not finished when the printer stops. It still needs the excess resin washed off and a final cure under ultraviolet (UV) light. Doing both by hand is slow, messy and uneven. Mercury Plus V3.0 does both properly.

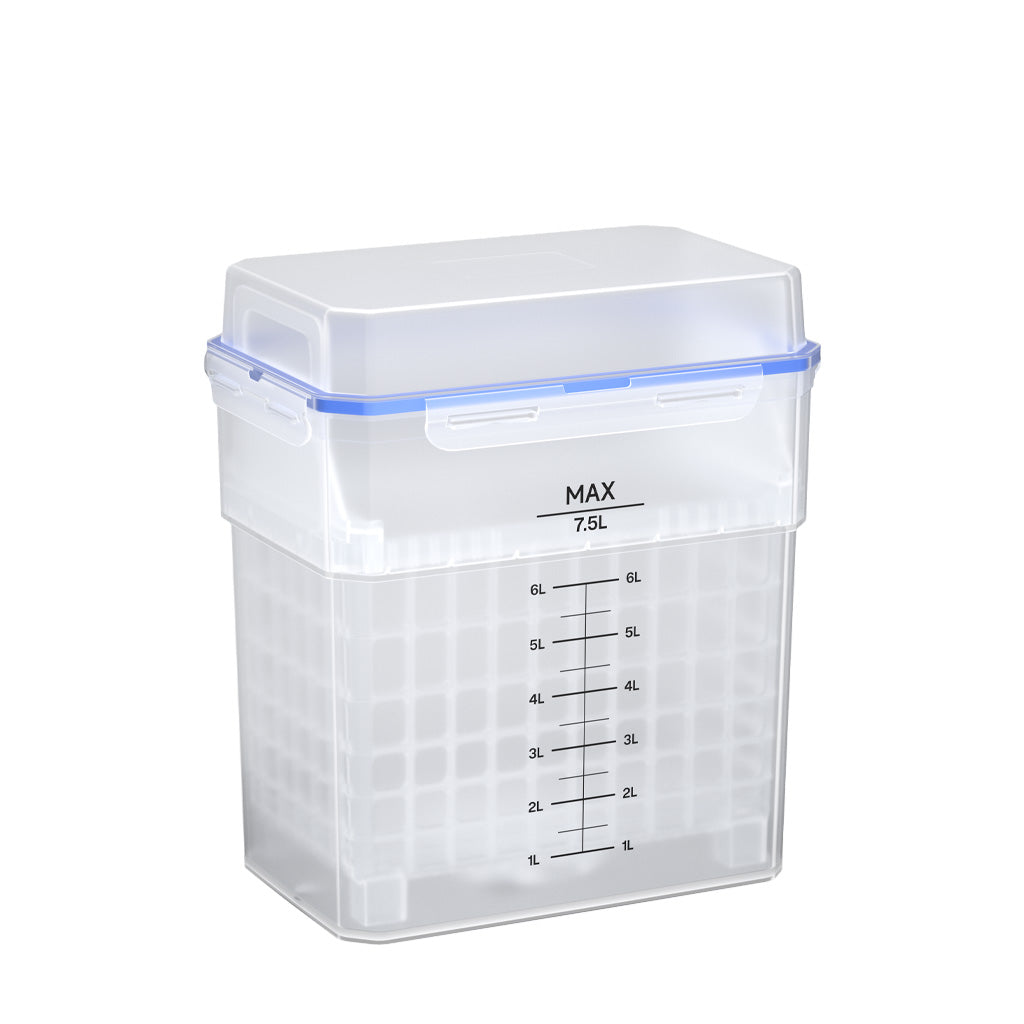

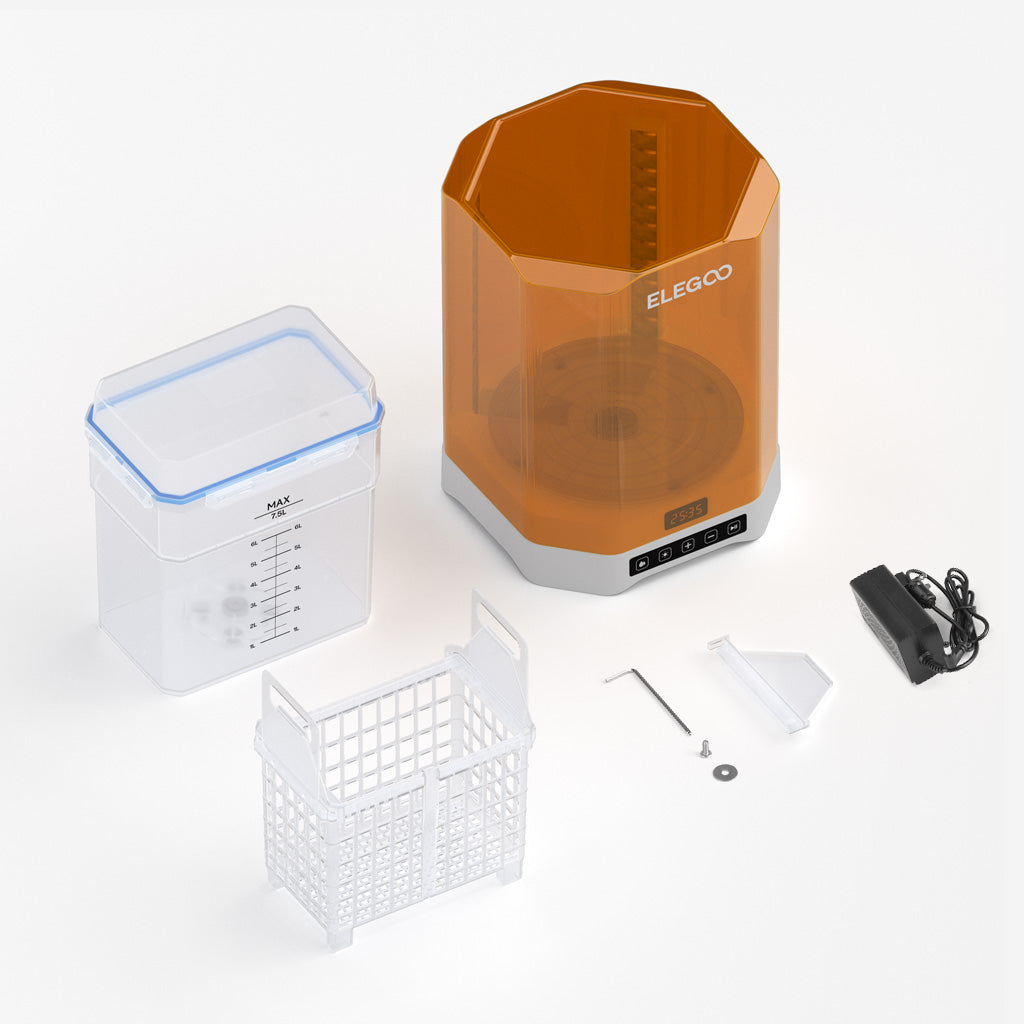

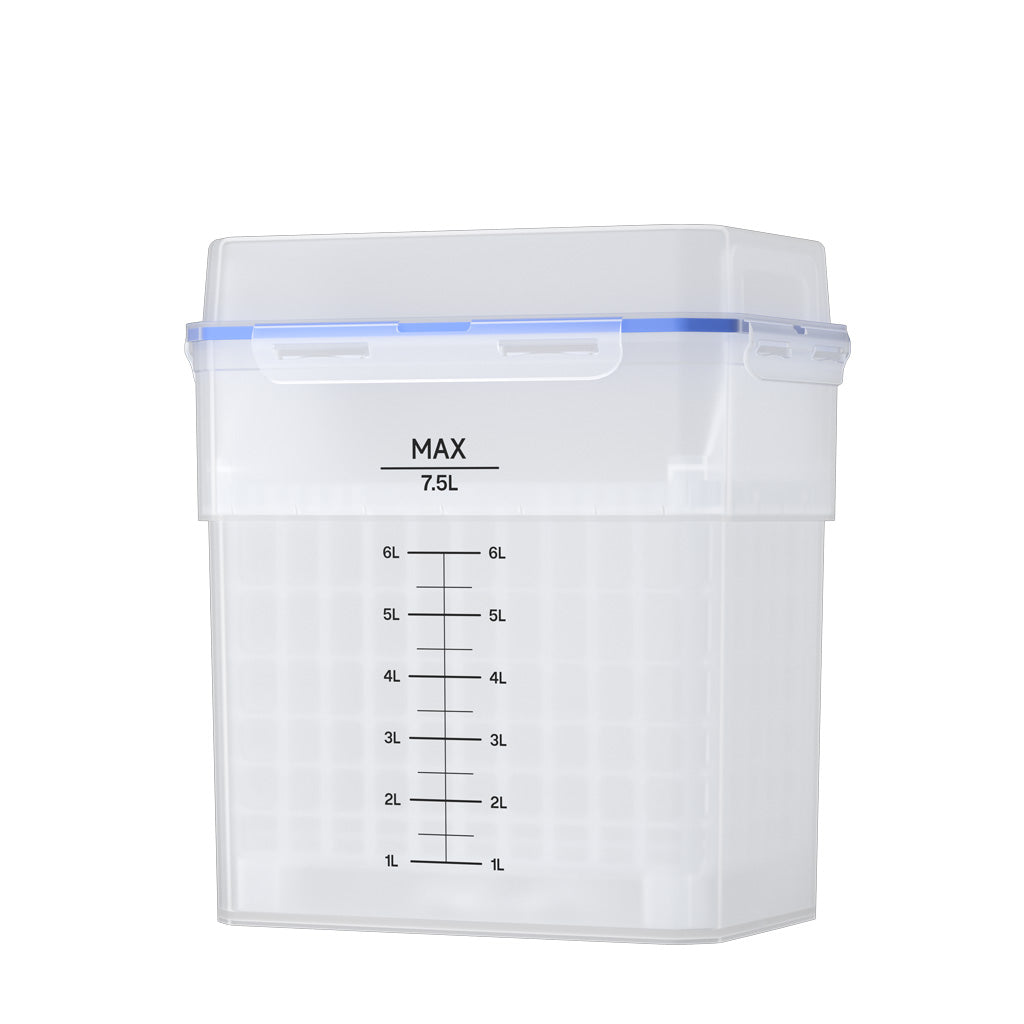

The lower half is a 7.5 litre wash tank with two modes: leave the model on the build plate and wash it hanging, or drop the parts into the basket and let it spin. The upper half is a 405 nm UV curing chamber with 24 LEDs, a 360° rotating turntable and reflective interior surfaces so light reaches every face of the model.
Specifications
- Wash tank: 7.5 litres
- Max wash size, basket mode: 230 × 135 × 260 mm
- Max wash size, build plate mode: 214 × 135 × 180 mm
- Max curing size: Ø250 × 290 mm
- UV: 24 LEDs at 405 nm
- Timer: 0–30 minutes
- Dimensions: 302.5 × 302.5 × 412.5 mm
- Weight: 4.7 kg
- Power: 100–240 V, 50/60 Hz
The cover blocks 99.9% of UV light, so it is safe to stay in the room while it cures. Compatible with ELEGOO Mars and Saturn series printers including the Saturn 4 Ultra and Mars 5 Ultra. ELEGOO also sells this same unit under the name Wash and Cure Station 3.0.
